We construct structural masonry in Waukegan, IL including CMU block walls, demising walls, and load bearing masonry for commercial and industrial buildings. Our crews work from engineered plans to deliver straight, plumb walls that meet code and schedule requirements.
Majestic Masonry Waukegan provides professional structural masonry throughout Waukegan, IL, Illinois and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call (224) 219-9579 or request your free quote.
Structural Masonry in Waukegan That Is Built to Carry the Load
Structural masonry is very different from a simple brick veneer, and understanding that difference helps you make smart decisions for your home or building in Waukegan. With structural masonry and block walls, the wall itself carries the weight of floors, roofs, or decks, instead of just hiding a wood or steel frame. At Majestic Masonry Waukegan, we design and build walls that resist vertical loads from above and lateral loads from wind and soil.
In our area, concrete block (CMU) is the most common structural material, sometimes combined with brick or stone as a facing. A typical structural block wall starts with properly sized footings that extend below the frost line, which in Waukegan means at least 42 inches deep. We work with local engineers or your architect to determine block size (usually 8 inch units for bearing walls), reinforcement spacing, and grout requirements so the wall can safely carry the intended loads.
Structural masonry can be used for basement and foundation walls, garage and shop walls, elevator and stair cores, retaining walls, and additions where you want solid construction instead of light framing. Majestic Masonry Waukegan focuses on making these walls not only strong but also workable for future trades, with planned openings, embedded anchors, and chases for plumbing and electrical when needed.

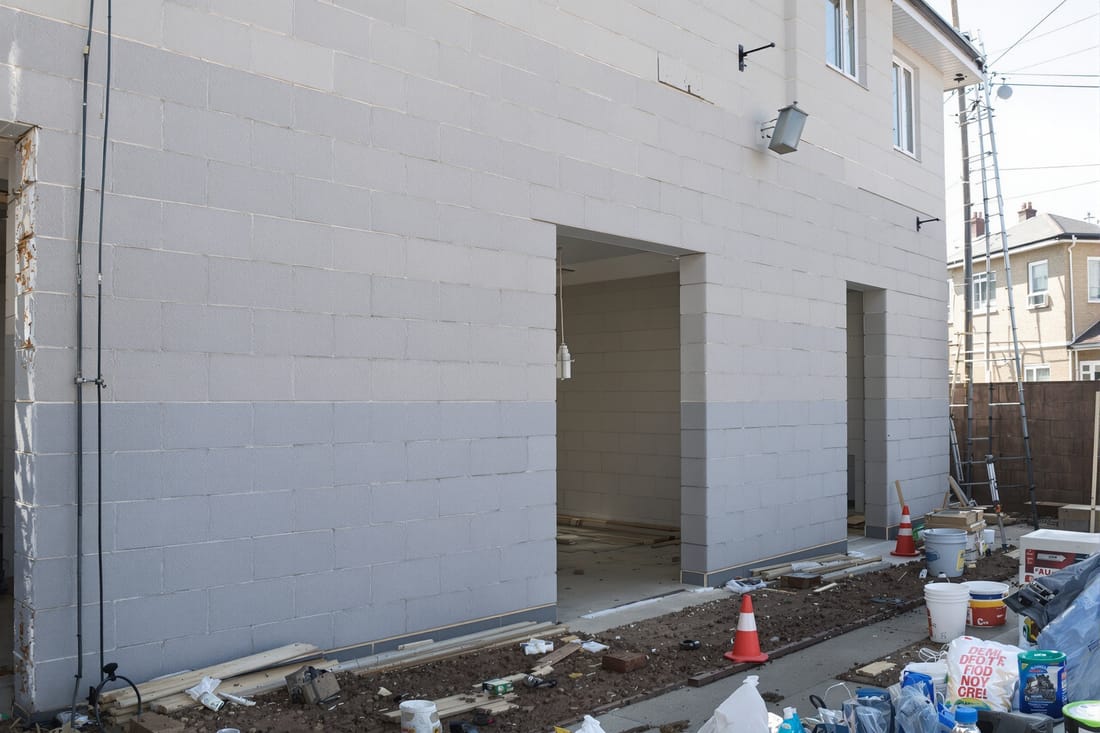

How We Build Structural Block Walls Step by Step
Each structural masonry project starts with a site visit. We check the soil conditions, existing foundations, drainage patterns, and access for materials and equipment. In older Waukegan neighborhoods, soil can vary from compact clay to fill, which affects footing width and reinforcement. Once we understand the site, we review or obtain structural drawings so the masonry layout matches the engineer’s specifications.
Footings are the base of everything. We excavate to the required depth, set forms, install horizontal rebar, and pour concrete to the specified width and thickness. For structural walls, we typically use keyways or dowels so the block wall ties into the footing instead of just sitting on top of it. After the concrete cures, we snap chalk lines to keep the first course of block dead straight and level.
The block laying process itself is methodical. We start with corner leads so the wall stays plumb and true, then “string” the line between corners. Mortar joints are kept consistent, normally 3/8 inch, and we check plumb and level constantly. Vertical rebar is placed where the engineer calls for it, often at a set spacing such as every 24 or 32 inches, and in all jambs around openings. We leave cleanout holes at the base where full grout cells will be needed.
Once several courses are up and rebar is in place, we grout the reinforced cells with a fluid concrete mix, using either low lift or high lift grouting depending on wall height and design. This turns hollow block sections into solid, reinforced columns within the wall. For load bearing or retaining walls, bond beams (special U shaped blocks) are installed at certain courses to tie the wall together horizontally. The result is a masonry system that behaves as a single structural element rather than a stack of individual blocks.
Material Options, Design Choices, and What Affects Cost
Structural masonry offers more options than most people realize. For basic structural block walls that will be hidden or furred out later, we usually recommend standard gray CMU in 8 inch thickness. If the wall will remain exposed, you can choose split face block, integral colored block, or a structural block backup with a brick or stone veneer on the outside. Majestic Masonry Waukegan walks you through these choices, including maintenance and cost differences.
Reinforcement level is a major cost driver. A lightly loaded garage wall might use vertical rebar at wider spacing, while a retaining wall holding back Waukegan clay soil or a multi story bearing wall needs tighter spacing and more grout. Taller walls, lots of openings, or high wind exposure along Lake Michigan can all increase the amount of steel and grout required. None of this is guesswork, it is all based on engineering.
Access and staging also influence price. Tight backyards in older Waukegan blocks may require more hand work and smaller deliveries instead of forklifts or telehandlers. Poor drainage or standing water near basements can require added waterproofing, drain tile, or thicker walls. If we are tying into existing foundations or masonry, we may need to cut, drill, and epoxy rebar into the old concrete so the new wall and old structure act together.
Finishing choices have an impact too. Exposed structural block can be left natural, painted, or sealed. Brick veneer on a structural block backup adds time for brick ties, weep systems, and lintels over openings. Interior surfaces might be parged (thin coat of mortar), furred and drywalled, or left industrial looking for shops and warehouses. We lay out all these variables with clear pricing so you can pick the combination that fits your budget and performance goals.
Dealing With Local Conditions, Common Problems, and Repairs
Waukegan’s freeze thaw cycles are tough on masonry, especially when moisture is not managed correctly. For below grade structural walls, such as basements and retaining walls, Majestic Masonry Waukegan focuses heavily on drainage. We typically include exterior waterproofing membranes, dimple board or protection board, and perforated drain tile at the footing that runs to a sump or daylight outlet. This reduces hydrostatic pressure and helps prevent cracking or inward bowing.
On existing structural masonry, common issues include stepped cracks, horizontal cracks at mid height, bowed basement walls, and spalling block faces. These are usually related to settlement, water pressure, or inadequate reinforcement in the original construction. When we inspect these problems, we look for patterns, measure bowing, and may recommend monitoring before deciding on a fix. Repairs may involve epoxy injection for tight structural cracks, helical wall anchors to pull walls back toward plumb, carbon fiber reinforcement strips, or partial rebuilding where block has lost its integrity.
For new work, we try to design out many of these risks. Proper control joints allow walls to move slightly with temperature and shrinkage without random cracking. Correct backfill practices around foundations are critical, we insist on compacted lifts and clean stone where specified, not mud pushed hard against a green wall. We also pay attention to detailing around deck ledgers, porch connections, and utility penetrations so you do not end up with water entry points that slowly damage the wall over time.
When to Schedule and How Majestic Masonry Waukegan Works With You
In the Waukegan climate, the best window for structural masonry is typically April through early November, when temperatures stay consistently above freezing. We can and do work outside of that range, but cold weather masonry requires special measures like heated enclosures, warm water mixes, and carefully protected mortar, which can add cost. For basement foundations, many homeowners aim for spring or late summer so framing can begin quickly after the walls cure.
The process with Majestic Masonry Waukegan is straightforward. After your initial call, we schedule a site visit to look at access, measure, and discuss your goals. If you already have plans, we review them and coordinate with your engineer or designer. If you do not, we can connect you with local professionals who understand structural masonry and the Waukegan building department requirements. We then provide a detailed written proposal that outlines scope, materials, reinforcement schedule, and estimated timeline.
Once approved, we handle permits related to the masonry portion and schedule excavation, concrete, and block crews in the right sequence. During construction, we keep the site as clean and organized as conditions allow, and we coordinate with other trades so that anchor bolts, embedded plates, and opening sizes match what your framer, steel fabricator, or door supplier expects. Before we wrap up, we review the work with you, point out structural elements that will matter later, such as where future openings could be added and where you should avoid cutting or drilling, and provide guidance on maintenance so your structural masonry and block walls perform for decades.
